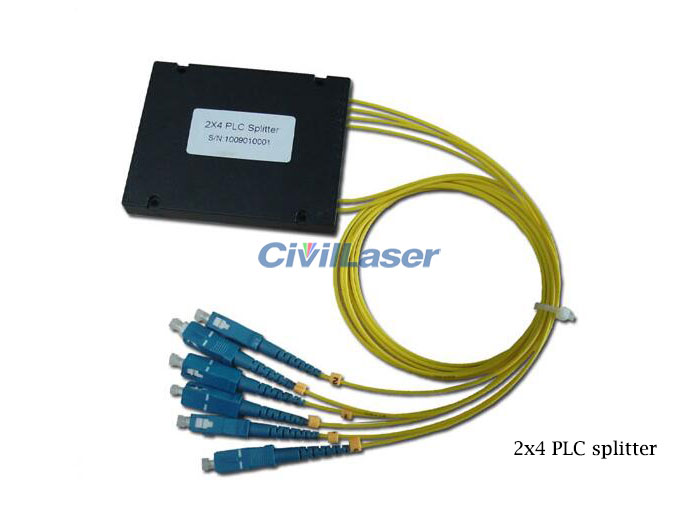

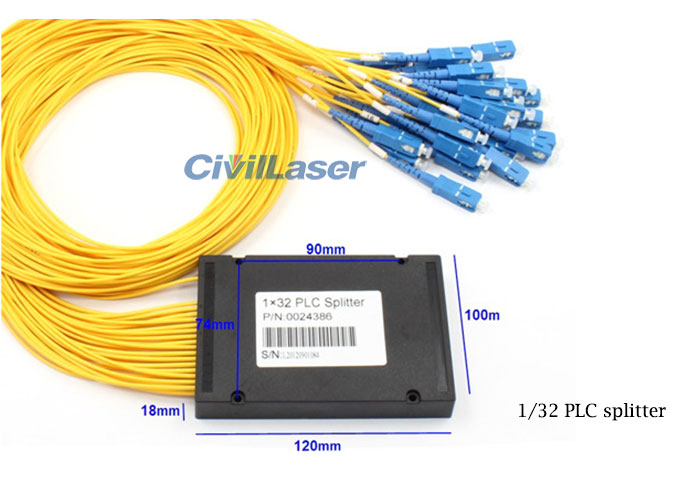

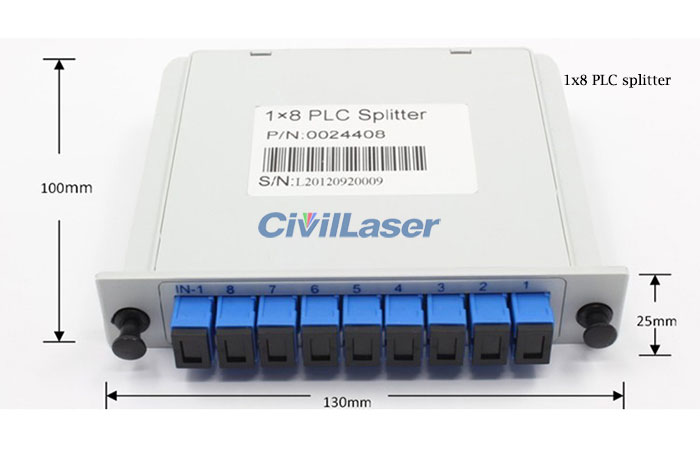

モジュール式の光ファイバ分岐器 2x4 ABS カセットPLC 分岐器
The PLC splitter, the short name of planar lightwave circuit splitter, is a popular style of fiber optic splitter used to divide an incoming optical signal into equal portions. Typical usages of our PLC splitter are in the FFTx system, MANs, WANs, CATV, and EPON.
Notes:
Our PLC splitter has a wide bandwidth, suitable for signals with wavelengths ranging from 1,260nm to 1,650nm. Its output channel exhibits good uniformity. Available in different packages, this small-sized optical fiber splitter can be tailored to customer specific requirements. Different configurations such as 1×N, 2×N can be provided. The maximum channel number can reach 64.
If you need other type splitter,or special requirements,please contact us.
もしあなた必要でその他分岐器,または特別パラメータ要求、连絡してください。
[特長]
1.高い互換性
2.低挿入損失
3.信頼性の高い
4.満足 IEC,ROHS 標準
5.満足elcordia GR-1209-CORE and Telcordia GR-1221-CORE要求
[応用]
1. CATV
2. アクティブ・デバイス|Active devices
3. 光ファイバ通信係統|Optical fiber communication system
4. LANs, WANs
5. 電気通信網|Telecommunication network
6. EPON/GPON
規格
1XN パラメータ |
パラメータ |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
Unit |
挿入損失 |
≤3.7 |
≤7.20 |
≤10.5 |
≤13.6 |
≤16.9 |
≤21.0 |
dB |
均一性 |
≤0.6 |
≤0.6 |
≤0.8 |
≤1.2 |
≤1.5 |
≤2.5 |
dB |
裸ファイバ包装寸法(L*W*H) |
40*4 *4 |
40*4 *4 |
40*4 *4 |
40*4 *4 |
50*7*4 |
60*12*4 |
mm |
0.9mm ルーズ管 包装(L*W*H) |
50*7 *4 |
50*7 *4 |
50*7 *4 |
60*12 *4 |
80*12*4 |
/ |
mm |
ABS 黒箱包装寸法(L*W*H) |
100*80*9
Screw Pitch:70x74 |
120*80*18
Screw Pitch: 80x74 |
140*114*18
Screw Pitch: 100x106 |
mm |
動作波長 |
1260~1650 |
nm |
偏波依存性損失 |
<0.2 |
dB |
方向性 |
>55 |
dB |
エコー損失 |
>55 |
dB |
作業温度 |
-40~+85 |
℃ |
貯蔵温度 |
-40~+85 |
℃ |
2XN パラメータ |
パラメータ |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
Unit |
挿入損失 |
≤4.0 |
≤7.5 |
≤11.2 |
≤14.5 |
≤17.5 |
≤21.4 |
dB |
均一性 |
0.8 |
≤1.2 |
≤1.5 |
≤2.0 |
≤2.5 |
≤2.5 |
dB |
裸ファイバ包装寸法(L*W*H) |
50*4*4 |
50*4*4 |
50*4*4 |
60*7*4 |
60*7*4 |
/ |
mm |
0.9mm ルーズ管 包装(L*W*H) |
60*7*4 |
60*7*4 |
60*7*4 |
80*12*6 |
100*20*6 |
/ |
mm |
ABS 黒箱包装寸法(L*W*H)) |
100*80*9
Screw Pitch:70x74 |
120*80*18
Screw Pitch: 80x74 |
140*114*18
Screw Pitch:100x106 |
mm |
動作波長 |
1260~1650 |
nm |
偏波依存性損失 |
<0.2 |
<0.3 |
dB |
方向性 |
>55 |
dB |
エコー損失 |
>55 |
dB |
作業温度 |
-40~+85 |
℃ |
貯蔵温度 |
-40~+85 |
℃ |
