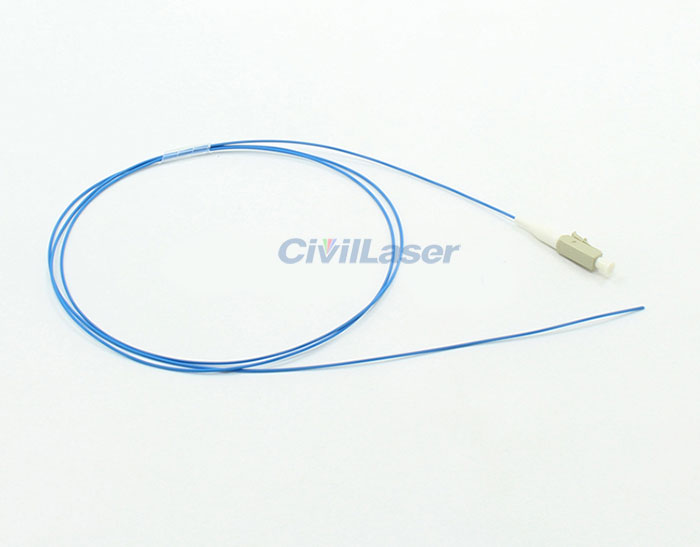

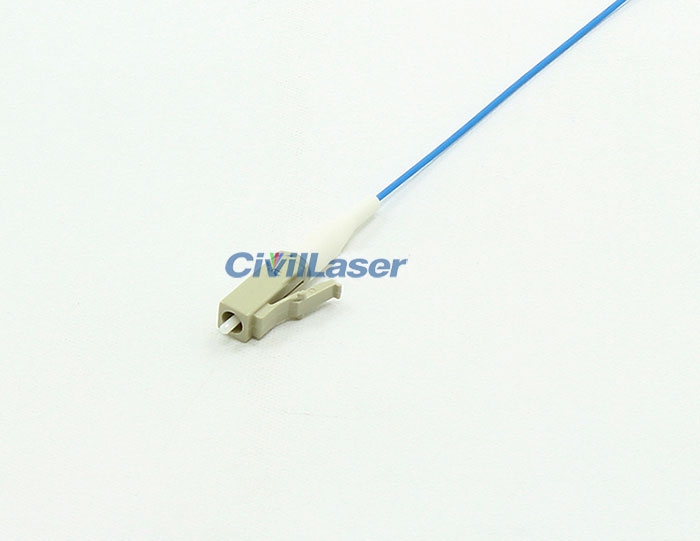

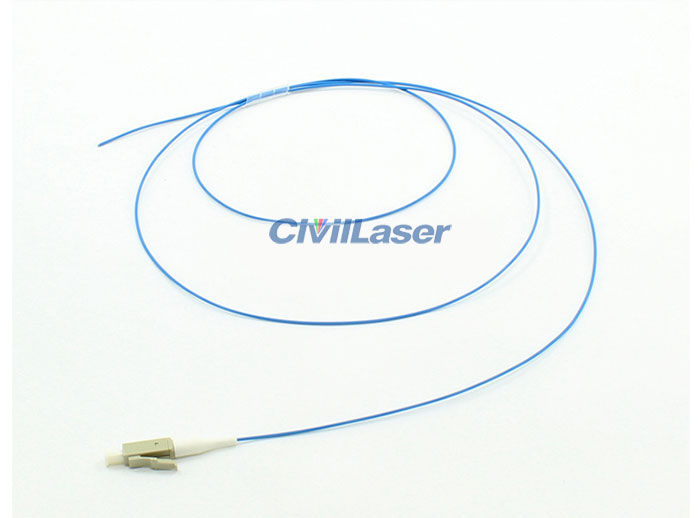

LC 多モード単芯 光パッチコード 50/125 ピッグテイル
The fiber optic patch cord is one of the most consumable basic fiber optic network components. It can be made up with different kinds of connectors such as the SC, LC, ST, FC, and MU connectors, and different types of fiber cable such as the single mode fiber and multimode fiber.
[特長]
1. 高品質のフェルール|High quality ferrule

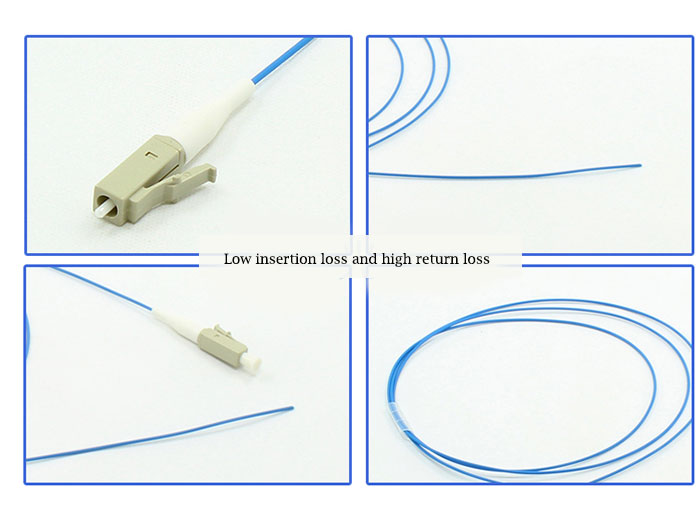

2. 低挿入損失と高いエコー損失|Low insertion loss and high return loss
3. 高い互換性と耐久性|High interchangeability and durability
4. The optic fiber patch cord can be customized according to customers' specific requirements.
光ファイバジャンパーに基づいて、顧客の具体的な要求にカスタマイズ.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
適合Telcordia GR-326-CORE、IEC and RoHS標準.
6. 厳格な硬化時間及び温度制御|Strict curing time and temperature control
7. 厳しい試験基準及び方法|Strict testing standards and methods
8. 厳しい品質試験|Strict quality testing
[応用]
1. Wiring of local area network between different enterprise buildings
異なる企業の建物の間のローカル・エリア・ネットワークの配線
2. Connection of optical links in optical active devices
光アクティブデバイスにおける光リンクの接続
3. Wiring in communication base station and distribution case
通信基地局と分布の場合には配線
4. 光学素子の製造と試験|Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
光ファイバ通信システム、ケーブルと電気通信網
6. LANs and WANs
7. FTTx
規格
項目 |
パラメータ |
コネクタの種類 |
LC |
光ファイバ型 |
多モード |
動作波長範囲 |
1,250~1,650nm |
試験波長 |
850nm,1300nm |
典型的な挿入損失 |
≤0.20dB |
最大の挿入損失 |
≤0.30dB |
エコー損 |
UPC>50dB.APC>60dB |
重複性 |
≤0.10dB |
交換できる性 |
≤0.20 |
挿抜性能 |
1,000 Mating, loss≤0.20dB |
垂直張力 |
≥120N(except 0.9mm cable)or customized |
作業温度 |
-2 0℃~ + 70℃ |
貯蔵温度 |
-40 ℃~ + 85℃ |
光ファイバ型 |
ケーブルの種類 |
コネクタ色 |
尾セット外径 |
尾セット色 |
フェルール端面 |
長さ |
SM: 9/125μm |
単一モード |
ベージュ |
0.9mm |
ベージュ |
UPC |
注文 |
MM: 50/125μm |
双芯 |
靑色 |
1.8mm |
靑色 |
APC |
MM: 62.5/125μm |
4-芯 |
緑色 |
2.0mm |
緑色 |
|
MM: OM3/150 |
6-芯 |
|
2.4mm |
靑緑色 |
|
MM: OM3/300 |
8-芯 |
|
3.0mm |
白色 |
|
MM: OM3/50 |
12-芯 |
|
|
黒色 |
|
|
24-芯 |
|
|
赤色 |
|
