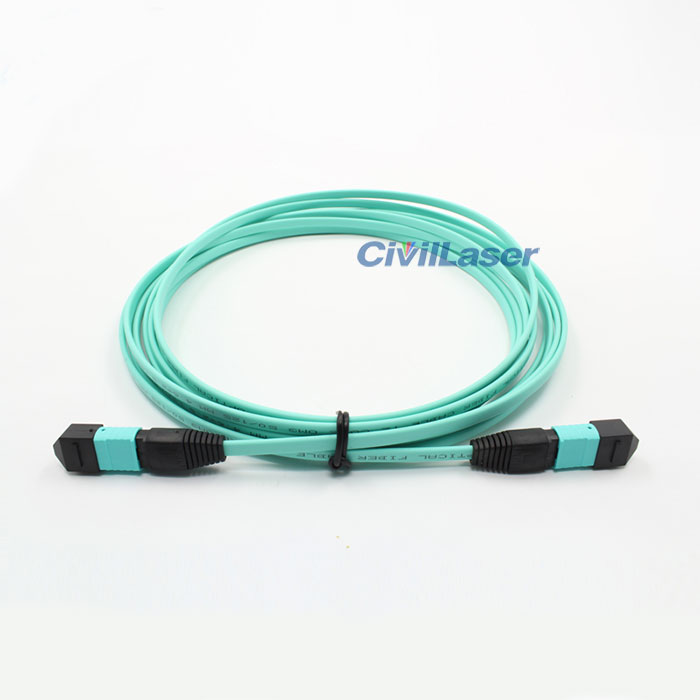

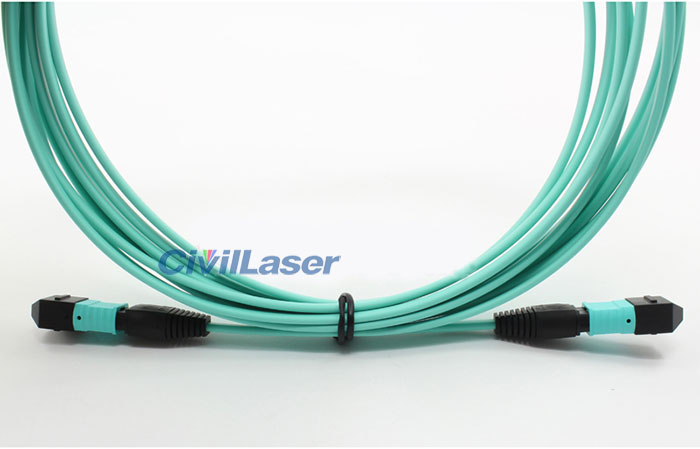

MPO 多モード12芯 OM 光パッチコード MTP は選べる
We can supply MPO fiber optic patch cables which are highly demanded in fiber optic communication systems with high density optical fibers. Transfer type MPO comes in many types such as bunchy and ribbon type. It can be split into 2 to 24 cores 0.9mm or 2mm fiber branch though a splitter (round or square). The connector type and the length of fiber patch cord can be decided by customers. Our product conforms to Telcordia GR-326, IEC and RoHS standards.
[特長]
[Features]

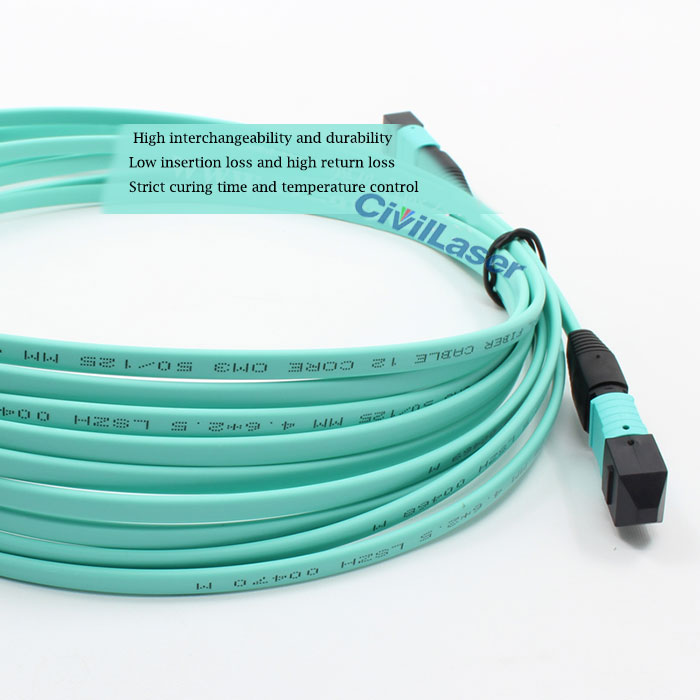

1. 高品質のフェルール,PIN針 精確照準|High quality ferrule and accurate alignment by PIN and PIN hole
2. 低挿入損失と高いエコー損失|Low insertion loss and high return loss
3. 高い互換性と耐久性|High interchangeability and durability

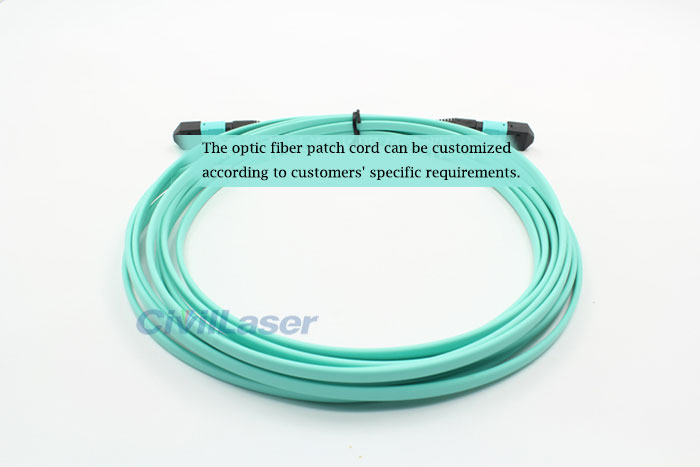

4. The optic fiber patch cord can be customized according to customers' specific requirements.
光ファイバジャンパーに基づいて、顧客の具体的な要求にカスタマイズ.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
適合Telcordia GR-326-CORE、IEC and RoHS標準.
6. MTP は選べる|MTP is optional
[応用]
1. Wiring of local area network between different enterprise buildings
異なる企業の建物の間のローカル・エリア・ネットワークの配線
2. Connection of optical links in optical active devices
光アクティブデバイスにおける光リンクの接続
3. Wiring in communication base station and distribution case
通信基地局と分布の場合には配線
4. 光学素子の製造と試験|Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
光ファイバ通信システム、ケーブルと電気通信網
6. LANs and WANs
7. FTTx
規格
項目 |
パラメータ |
コネクタの種類 |
MPO |
光ファイバ型 |
多モード(PC) |
動作波長範囲 |
1,250~1,650nm |
試験波長 |
1310nm,1550nm |
典型的な挿入損失 |
≤0.20dB |
最大の挿入損失 |
≤0.30dB |
エコー損 |
≥50.0dB |
適用光ケーブルタイプ |
MTP:帯状ケーブル,束状ケーブル |
重複性 |
≤0.10dB |
交換できる性 |
≤0.20 |
挿抜性能 |
1,000 Mating, loss≤0.20dB |
垂直張力 |
≥120N(except 0.9mm cable)or customized |
作業温度 |
-2 0℃~ + 70℃ |
貯蔵温度 |
-40 ℃~ + 85℃ |
光ファイバ型 |
ケーブル類型 |
コネクタPIN針 |
尾套外径 |
尾套色 |
芯プラグ研磨類型 |
長さ |
SM: 9/125μm |
Single cable duplex,
3.0mm cable |
公の頭 |
2.0mm |
黒色 |
PC |
注文 |
MM: 50/125μm |
双芯 |
母の頭 |
3.0mm |
|
APC |
MM: 62.5/125μm |
帯状ケーブル |
|
Sleeve with fiber |
|
|
MM: OM3/150 |
束状ケーブル |
|
|
|
|
