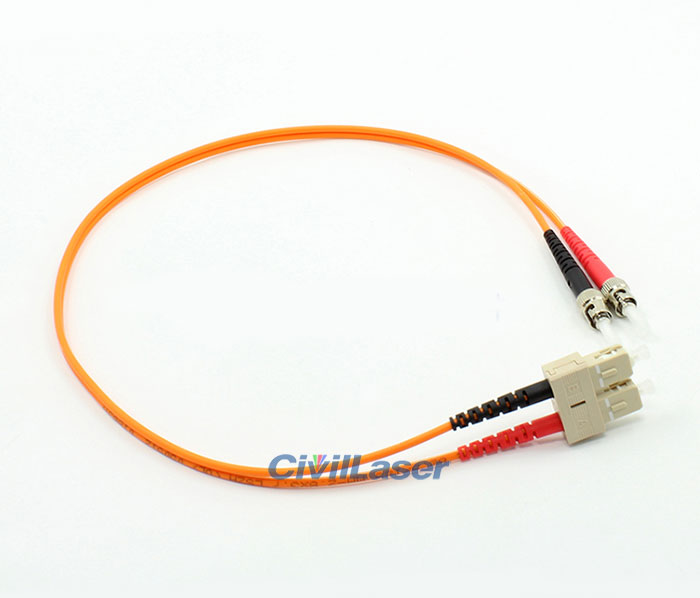

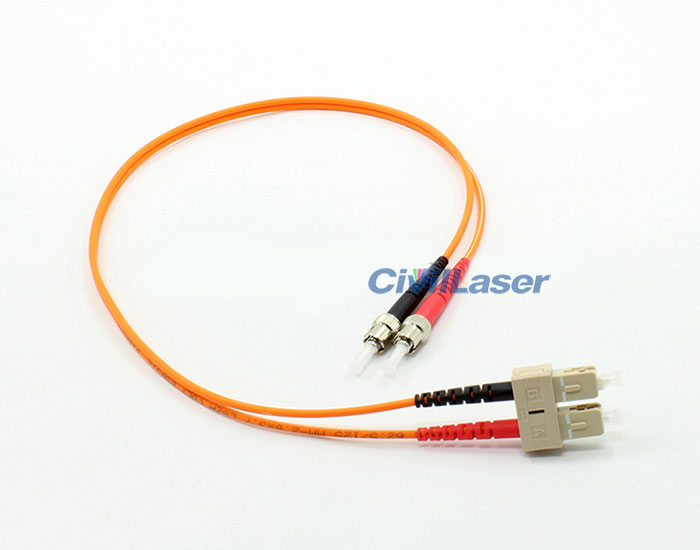

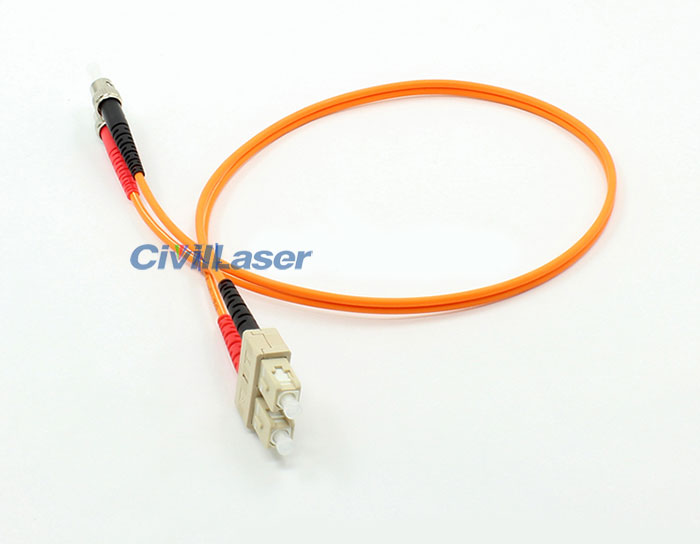

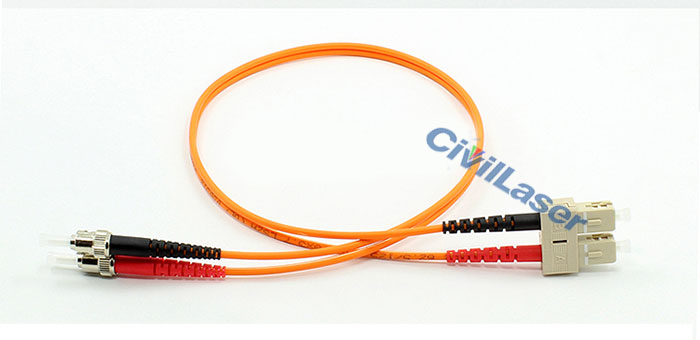

ST-SC 多モード双芯光パッチコード

843円

カートに入れる:
最小:  10

ST-SC 多モード双芯光パッチコード

The fiber optic patch cord is one of the most consumable basic fiber optic network components. It can be made up with different kinds of connectors such as the SC, LC, ST, FC, and MU connectors, and different types of fiber cable such as the single mode fiber and multimode fiber.

[特長]
[Features]
1. 高品質のフェルール|High quality ferrule

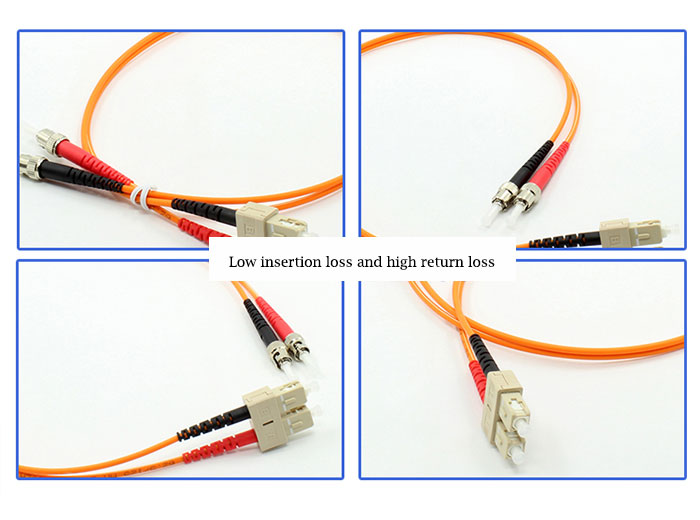

2. 低挿入損失と高いエコー損失|Low insertion loss and high return loss
3. 高い互換性と耐久性|High interchangeability and durability
4. The optic fiber patch cord can be customized according to customers' specific requirements.
    光ファイバジャンパーに基づいて、顧客の具体的な要求にカスタマイズ.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
    適合Telcordia GR-326-CORE、IEC and RoHS標準.
6. 厳格な硬化時間及び温度制御|Strict curing time and temperature control
7. 厳しい試験基準及び方法|Strict testing standards and methods
8. 厳しい品質試験|Strict quality testing

[応用]
1. Wiring of local area network between different enterprise buildings
    異なる企業の建物の間のローカル・エリア・ネットワークの配線
2. Connection of optical links in optical active devices
    光アクティブデバイスにおける光リンクの接続
3. Wiring in communication base station and distribution case
    通信基地局と分布の場合には配線
4. 光学素子の製造と試験|Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
  光ファイバ通信システム、ケーブルと電気通信網
6. LANs and WANs
7. FTTx

注意:
If you need other type multimode(MM) fiber patch cores,please contact us ,we provied SMA,FC ,MU,SC,ST,LC,MTRJ,MPO MM fiber patch cord.
需要他の種類の多一モード光パッチコード,连絡してください,我々提供DSMA,FC ,MU,SC,ST,LC,MTRJ,MPO MM光パッチコード.

規格

項目 パラメータ
コネクタの種類 FC,LC
光ファイバ型 多モード
動作波長範囲 1,250~1,650nm
試験波長 850nm,1300nm
典型的な挿入損失 ≤0.20dB
最大の挿入損失 ≤0.30dB
エコー損 UPC ≥50.0dB,APC ≥60.0dB
重複性 ≤0.10dB
交換できる性 ≤0.20
挿抜性能 1,000 Mating, loss≤0.20dB
垂直張力 ≥120N(except 0.9mm cable)or customized
作業温度 -2 0℃~ + 70℃
貯蔵温度 -40 ℃~ + 85℃



光ファイバ型 ケーブルの種類 コネクタ色 尾セット外径 尾セット フェルール端面 長さ
SM: 9/125μm 単一モード ベージュ 0.9mm ベージュ UPC 注文
MM: 50/125μm 双芯 靑色 1.8mm 靑色 APC
MM: 62.5/125μm 4-芯 緑色 2.0mm 緑色
MM: OM3/150 6-芯   2.4mm 靑緑色
MM: OM3/300 8-芯   3.0mm 白色
MM: OM3/50 12-芯     黒色
  24-芯     赤色
