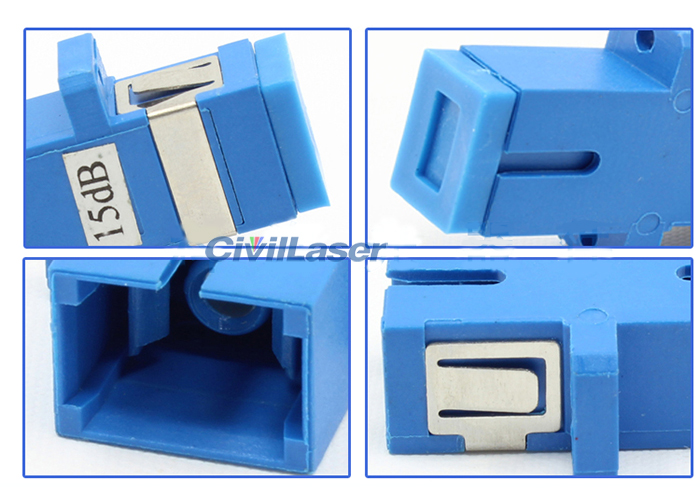

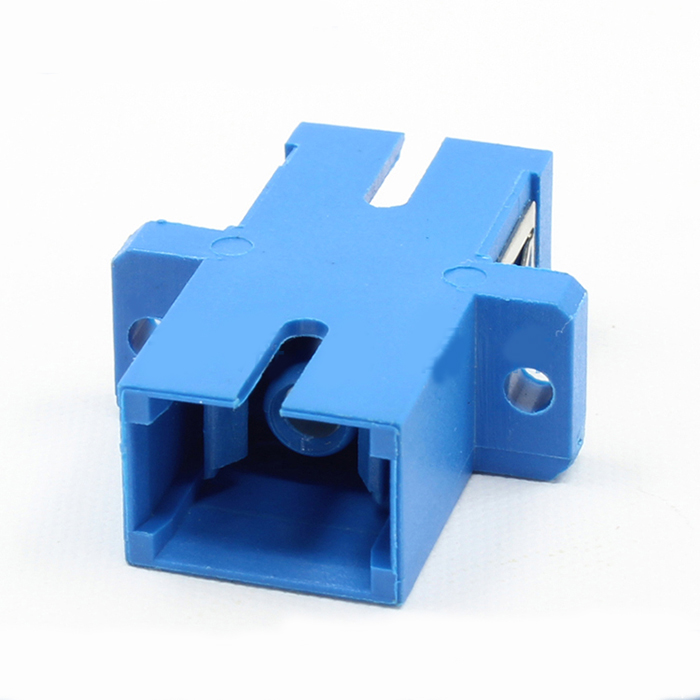

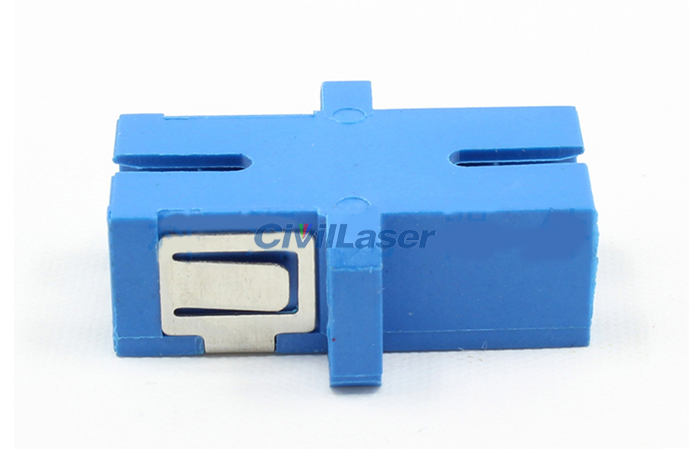

SC 光ファイバ減衰器 フランジ型アダプタ減衰器

340円

カートに入れる:
最小:  10

SC 光ファイバ減衰器 フランジ型アダプタ減衰器

Flange Type Fixed Attenuator also called adapter type attenuator,the shape is similar to the common adapter.The principle is to install the attenuator inside the adapter,so that the connector is not connected with each other to achieve the purpose of attenuation.
This range of fixed attenuator is mainly used to reduce optical power to target value in optical links. It comes in different types including SC, LC, FC, ST and MU. Based on the shape of ferrule shape, the fixed optical attenuator can also be classified as PC and APC with 8 degrees type. The attenuation value is in range of 0 to 30dB, which are all applicable for optical signal with wavelength ranging from 1,250nm to 1,650nm.

[特長]
1. 良いの互換性と再現性|Good interchangeability and repeatability
2. 精度減衰|Accurate attenuation
3. 高信頼性|High reliability
4. 満足IEC及び RoHS標準|Compliant with the IEC and RoHS standards

[応用]
1. テスト設備|Testing instruments
2. 装置間の接続|Connection between devices
3. ジャンパー線間の接続|Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

規格

項目 パラメータ 単位
フランジ式の減衰器 FC(Suitable for PC connector)
  1310,1550 nm
Operating Bandwidth Range 1,250~1,650 nm
Typical attenuation 3,5,7,10,15,20 dB
Attenuation Tolerance ±10% /
Repeatability ≤0.10 dB
Exchangeability ≤0.20 dB
Durability 1,000 Mating, loss≤0.20 dB
Operating Temperature -2 0  to + 70
Storage Temperature -40  to + 85
