赤色 オレンジ レーザーダイオード 635/638nm HL63133DG 170mW 単一モード

赤色 オレンジ レーザーダイオード 635/638nm HL63133DG 170mW 単一モード





It's single-mode laser diode, so it's  expensive than multi-mode laser diode.

The beam spot is small.

Suitable for long distance illumination!

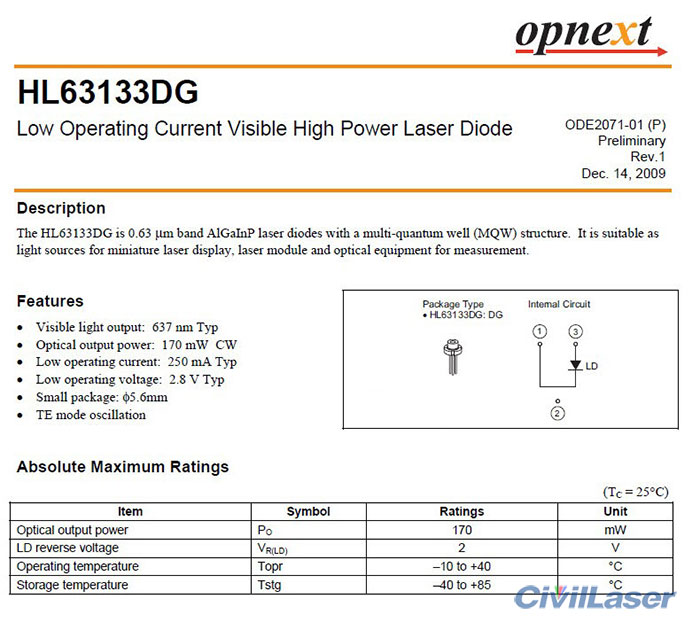

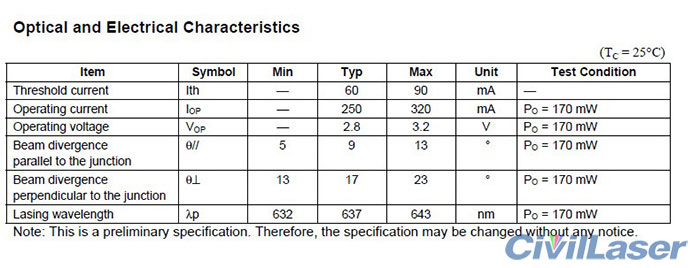

商品名|Product name: 日立 638nm 赤色 レーザーダイオード

波長|Output Wavelength: 637nm(635nm~638nm)

出力|Output Power: 170mw

定額電流|Operating Current: 250mA~350mA

しきい電流|Threshold Current: 60mA

定額電圧|Operating Voltage: DC 2.8V~3.2V

パッケージ種類|Package Type: TO-18 (Φ5.6mm)

作動温度|Operating Temperature: -10℃~40℃

保管温度|Storage Temperature: -40℃~85℃

生産地|Place of production: Japan

作動寿命|Working life: >10,000 hours







1 x 637nm  レーザーダイオード







This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.





This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
