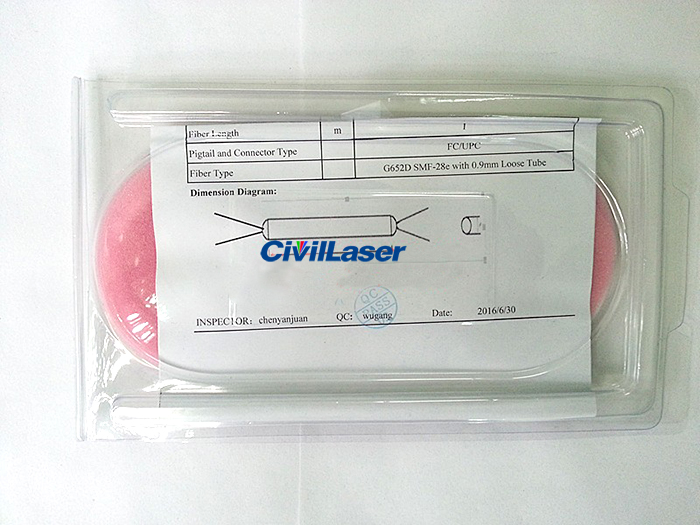

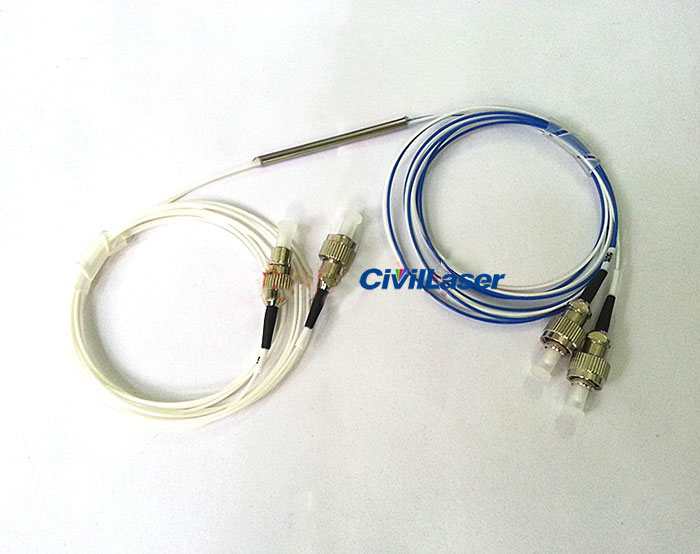

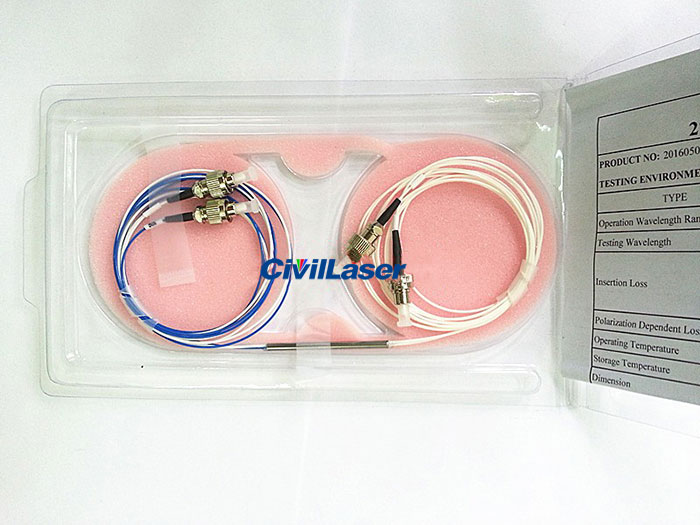

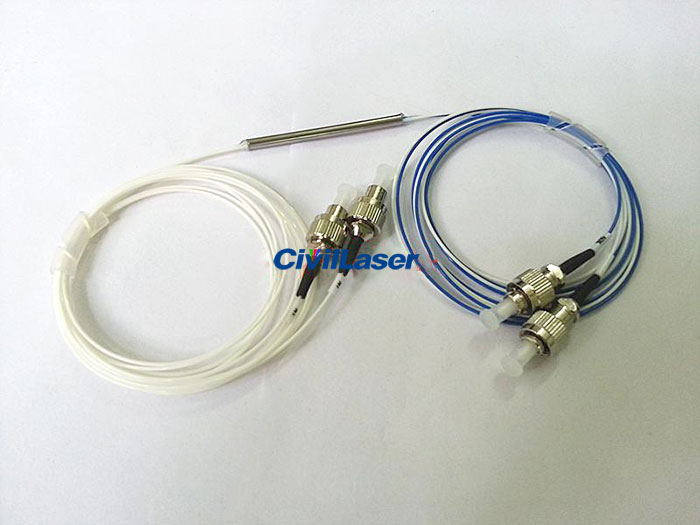

2X2 光ファイバカプラ 1310nm /1550nm シングルモードダブルウィンドウ ファイバースプリッター FC/UPC
この光ファイバーカプラーは、独自のフュージョンテーパーテクノロジーによって描画されます。 これには、優れた環境安定性、低い追加損失、および低い分極関連損失という利点があります。 光パワー分配に使用できます。 製品は自動化された生産設備と成熟した製造を採用しています。技術は大量生産されています。 光ファイバ通信システム、光ファイバCATVシステム、光ファイバローカルエリアネットワークなどの分野で広く使用されています。
This optical fiber coupler is drawn by a unique fusion taper technology. It has the advantages of good environmental stability, low additional loss and low polarization-related loss. It can be used for optical power distribution; the product adopts automated production equipment and mature manufacturing The technology has been mass-produced; it is widely used in optical fiber communication systems, optical fiber CATV systems, optical fiber local area networks and other fields.
[特徴]
追加損失が少ない
低偏光依存損失
良い方向性
良好な環境安定性
[応用]
ファイバートゥザホーム
ファイバーCATV
ファイバーアクセスネットワーク
光増幅器
光ファイバ試験装置
[仕様]
商品名|Product Name: ファイバーカプラー
中心波長|Center Wavelength: 1310nm / 1550nm
スプリットレシオ|Split Ratio: 50:50, 40:60, 30:70, 20:80, 10:90, 5:95, 1:99 (選択)
ファイバーの長さ|Fiber Length: 1.0m
ファイバータイプ|Fiber Type: G652D SMF-28e with 0.9mm loose tube
コネクタタイプ|Connector Type: FC/UPC
パラメータ |
単位 |
標準値 |
波長 |
nm |
1310, 1550 |
帯域幅 |
nm |
±40nm |
グレード |
|
Class P |
Class A |
追加の損失 |
dB |
0.22 |
0.30 |
スプリットレシオ |
単位 |
最大挿入損失 |
50:50 |
dB |
≤3.6 |
≤3.8 |
40:60 |
dB |
≤4.70/2.70 |
≤4.90/2.90 |
30:70 |
dB |
≤6.00/1.90 |
≤6.30/2.10 |
20:80 |
dB |
≤7.90/1.30 |
≤8.40/1.40 |
10:90 |
dB |
9.20~11.30/≤0.75 |
8.75~12.00/≤0.80 |
50:95 |
dB |
12.05~14.35/≤0.40 |
11.55~14.85/≤0.50 |
1:99 |
dB |
18.60~21.60/≤0.25 |
17.95~22.25/≤0.35 |
偏光依存損失 |
dB |
≤0.15 |
≤0.20 |
方向性 |
dB |
≥55 |
動作温度 |
℃ |
-40 ~ 85 |
