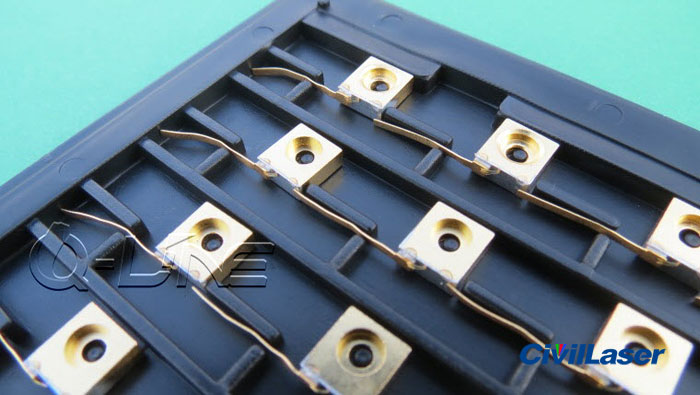

808nm 1000mw/1W C-Mount 高出力 赤外線 レーザーダイオード

6,953円

カートに入れる:


808nm 1000mw/1W C-Mount 高出力 赤外線 レーザーダイオード

【規格】
商品名: 赤外線 レーザーダイオード
生産地: 台湾
発振波長[λp]: 808nm
光出力[Po]: CW 1000mW
パルス出力: >3500mW
動作電流[Iop]: <1200mA
作動電圧[Vop]: 1.7V - 2.2V

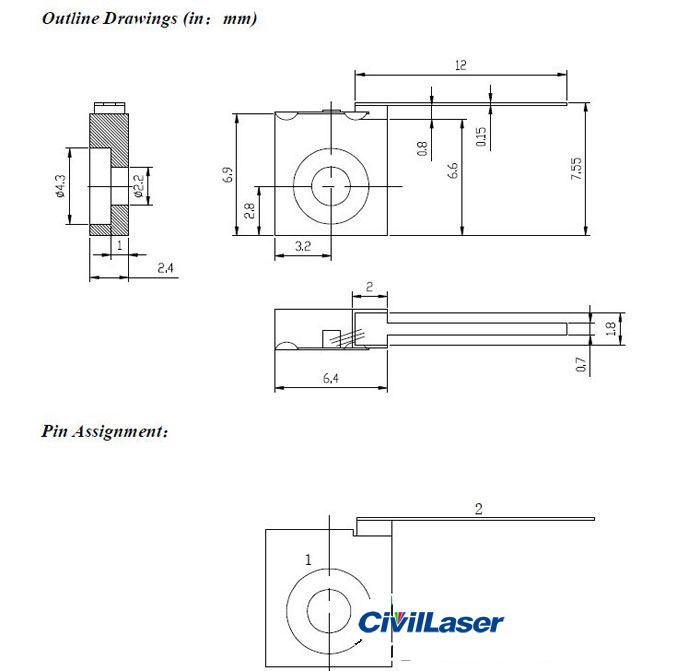

パッケージ種類: C-MOUNT
作動寿命(MTTF): >10,000 hours


Note:
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
